Why Use a Tuning Plate for Your Offset Smoker

Unlocking Even Heat: The Benefits of Tuning Plates in Your Offset Smoker

Achieving consistent heat distribution in your offset smoker can be challenging. Tuning plates offer a solution by balancing temperatures across the cooking chamber, ensuring perfectly smoked meats every time. If you're cooking on an offset smoker, especially one with a firebox, tuning plates are a must-have accessory for dialing in even cooking zones and reducing hot spots.

• What is a Tuning Plate?
• Benefits of Using a Tuning Plate
• How to Install a Tuning Plate
• Pro Tips for Maximizing Tuning Plate Performance
• FAQ
• Related Blogs

What is a Tuning Plate?

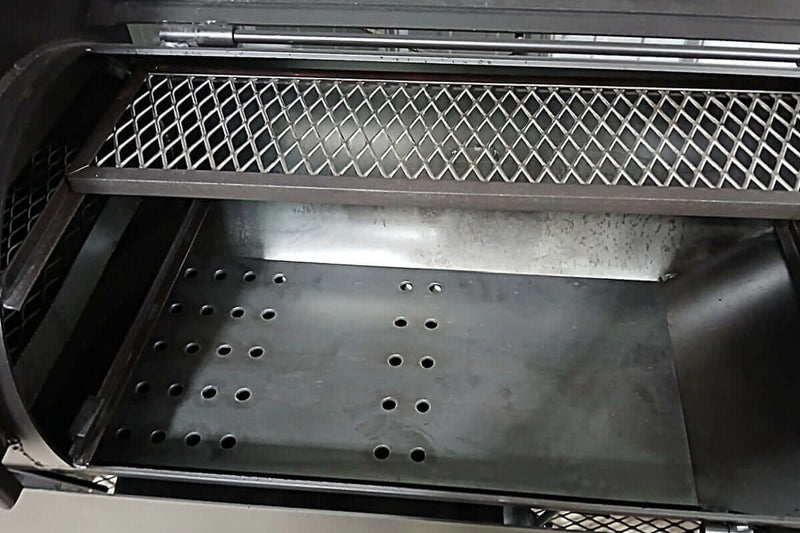

A tuning plate is a thick piece of metal that sits between the firebox and the main cooking chamber of an offset smoker. Its purpose is to redirect and regulate the flow of heat and smoke throughout the smoker, eliminating hotspots and reducing drastic temperature fluctuations. Without one, you're likely to experience uneven cooking with meats placed closer to the firebox cooking faster—and often burning—while food on the far end remains undercooked.

Offset smokers are designed to create indirect heat by placing the fire to one side. The problem is that the heat doesn't naturally disperse evenly across the chamber. A tuning plate bridges that gap, making the entire cooking surface usable. Some models feature adjustable plates or baffle systems so you can fine-tune the airflow and create hotter and cooler zones based on what you're smoking.

Benefits of Using a Tuning Plate

• Even Heat Distribution: The biggest benefit is that you get consistent heat from one end of your smoker to the other. This consistency allows for better overall control, especially on long smokes like brisket or pork shoulder.
• Better Smoke Circulation: Tuning plates also improve smoke distribution. Instead of having smoke escape quickly through the chimney, it rolls more evenly across your meat, enhancing the flavor profile of your cook.
• Fuel Efficiency: Because you're not overcompensating for hot and cool zones, you'll burn less wood or charcoal trying to maintain temperature.
• More Usable Cooking Space: No need to avoid placing food near the firebox. The whole chamber becomes viable for cooking, letting you load up your smoker with confidence.
• Consistency Between Cooks: Once dialed in, tuning plates offer a level of repeatability that’s critical for both backyard cooks and competition teams.

How to Install a Tuning Plate

1. Measure Your Smoker: Start by measuring the length and width of the bottom of your cooking chamber to ensure proper fit.
2. Select the Right Product: Check out our tuning plate collection to find a plate specifically designed for your offset smoker model. We can also cut custom tuning plates for your smoker.
3. Install Near the Firebox: The plate should start as close to the firebox opening as possible. Depending on the design, some may extend the full length of the chamber while others are sectional.
4. Adjust for Best Performance: Use a set of temperature probes to test the heat at different areas across the chamber. If your plate is adjustable, reposition as needed to reduce any hotspots.

Pro Tips for Maximizing Tuning Plate Performance

• Use Water Pans: Pair your tuning plate with a water pan to maintain moisture and further stabilize heat.
• Add a Heat Deflector: In some cases, using a heat deflector or baffle directly above the firebox along with your tuning plate can produce even more balanced temperatures.
• Test With Biscuits: A common test is placing raw biscuit dough across the grate. Observe which ones cook faster to identify hotspots and fine-tune your plate placement.
• Keep It Clean: Built-up grease or ash can alter how heat flows. Clean your tuning plate regularly to maintain optimal performance.

FAQ

Can I use a tuning plate in any smoker?

No, tuning plates are designed specifically for offset smokers. Vertical smokers, cabinet smokers, and pellet grills use different heat management strategies.

Do tuning plates work with reverse flow smokers?

Reverse flow smokers often include built-in baffle plates, so a separate tuning plate is usually unnecessary. However, if your reverse flow design lacks one or needs modification, a tuning plate might still help.

How thick should a tuning plate be?

Look for plates that are at least 1/8-inch thick, though many pitmasters prefer 1/4-inch for better heat retention and control. All of our plates at DDR BBQ Supply are built for durability and performance.

Can tuning plates help during winter cooks?

Yes, especially in colder weather. A good plate acts like a heat sink, retaining and evenly distributing warmth so you don't have to chase temperature spikes every time you open the lid.
